16S-17S Li-ion Battery Protection Board 60V 30A Same Port with Balanced / Static Protection | 16S-17S BMS


Style: 16S-17S with balance
Price:
Sale price$22.99

Description

 Product Description--

Product model: CF-64V30A-A

Product name: 16S-17S Li-ion battery protection board 60V 30A

Size: 80*55*10mm

Weight: 86g

Charging current: ≤15A

Discharge current: 30A

Internal resistance: ≤30mΩ



Charging voltage:

The number Li-ion battery in series connection X 4.2V



Overcharge protection——

Detection voltage: 4.25±0.025V

Detection delay: 100±50MS

Release voltage: 4.15±0.05V



Over-discharge voltage protection——

Detection voltage: 2.7±0.1V

Detection delay: 100±50MS

Release voltage: 3.0±0.1V



Balanced voltage——

Detection voltage: 4.2±0.025V

Detection delay: 100±50MS

Balance current: 42±5MA



Discharge overcurrent protection——

Detection voltage: 150MV

Detection delay: 100±50MS

Current protection: 130±30A



Short circuit protection--

Trigger condition: short circuit of external load

Detection delay: 300us

Release conditions: disconnect the load, charging is activated



Temperature control protection——

Charge and discharge over-temperature protection:--

Charge and discharge high temperature release temperature:--

Release condition: During normal working temperature



Self-consumption——

Working power consumption: ≤35UA

over-discharge power consumption (Sleeping State): ≤10UA

Operating temperature range: -30°~+80°C



Product Features--

Overcharge protection

Over discharge protection

Overcurrent protection

Balanced protection

Moisture protection

Static Protection

Dust protection





Product advantages--

  1. Open cooling system

Using heat sink anodic oxidation technology, the temperature can be radiated to the outside stably and safely.



  1. 2. High-quality MOS tube is impact resistant and has low temperature rise.

Brand-new high-quality low internal resistance MOS tube, multiple optimized protection management schemes, stably reduces the internal resistance of the circuit and prolongs the service life.



  1. 3. Brush the three-proof paint, multiple protections, to ensure safety and reliability.



  1. 4. Smart chip!

It is carefully made with high-quality components to achieve a series of functions such as long service life, strong endurance, and low charging and discharging temperature.



  1. 5. The layout is clearly visible!

The inside to the outside of the protection board is intuitively visible, and each part can be clearly understood.

17s li-ion bms board components
17s 30a battery protection board with 2 variants
high-quality mosfet for li-ion bms board

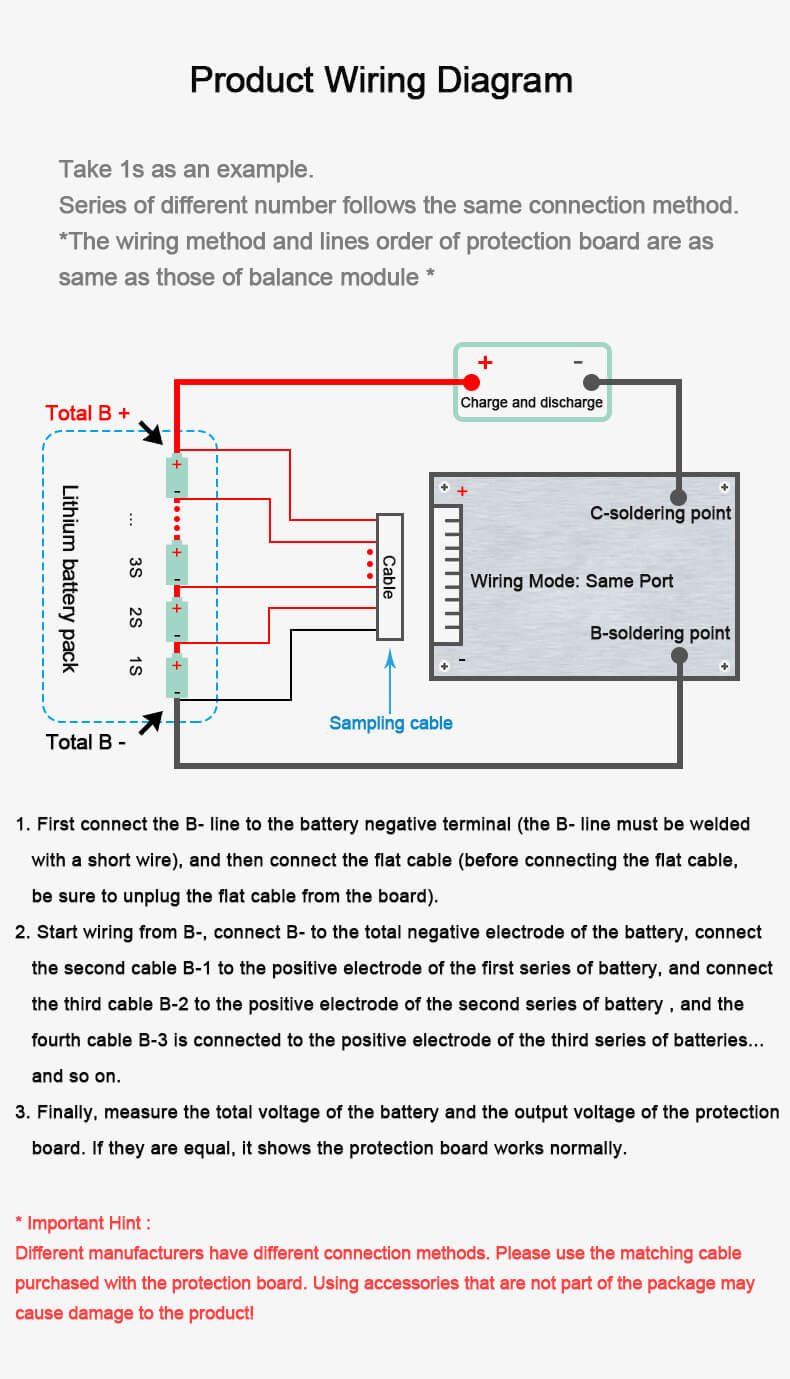

17s 60v bms board wiring diagram
